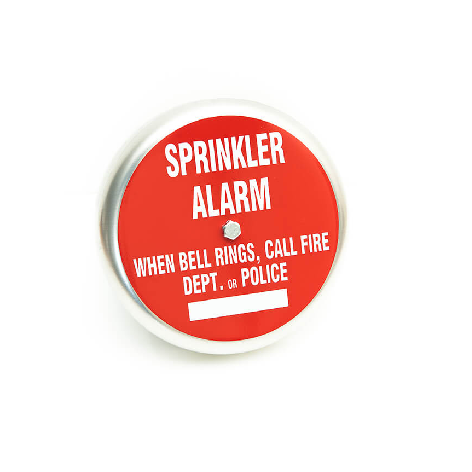

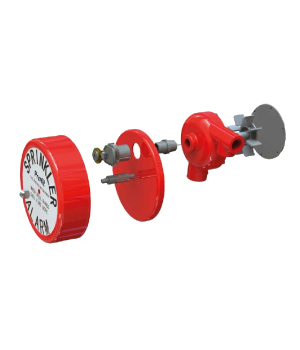

Model EA Water Motor Alarm Gong
Sprinkler Alarm is a hydraulically driven mechanical bell. It does sound a continuous alarm when the sprinkler system operates. The impeller and drive shaft are energy efficient, made from lightweight non-metallic material and does not require any external lubrication. The gong, protection cover and motor housing are made of corrosion-resistant aluminium alloy.
| STANDARD SPECIFICATION: | |
|---|---|
|
INLET CONNECTION |
3/4" NPT
|
|
OUTLET CONNECTION |
1" NPT
|
|
WORKING PRESSURE |
12 bar (175 psi)
|
|
USE |
Indoor or Outdoor
|
|
APPROVALS |
FM Approved, UL Listed
|
| Technical Data | |
|---|---|
|
Part Name |
MATERIAL |
|
Model
|
EA |
|
Mounting Type
|
Type - A & Type - B
|
|
Maximum Working Pressure
|
12.3 Kg./Sq.cm. ( 175 PSI )
|
|
Connection
|
Inlet: 3/4" BSPT ( 3/4" NPT)
Drain: 1" BSPT ( 1" NPT ) |
|
Factory Test |
At low flow - 0.35 Kg./sq.cm.( 5 PSI )
At high flow - 7 Kg./sq.cm.( 100 PSI ) |
|
Gong Diameter |
205mm ( 8" ) |
|
Gong Depth |
50mm ( 2" ) |
|
Finish |
Epoxy red powder coated |
|
Weight |
3.0 Kg. |
|
Ordering Information |
Model & Mounting |
| Material Specifications | ||
|---|---|---|
|
Description |
Qty |
MATERIAL |
|
Housing
|
1 |
Aluminium Alloy
|
|
Pelton Wheel |
1
|
Delrin
|
|
Retaining Ring |
1 |
SS 316
|
|
Drive Shaft Adaptor |
1
|
Delrin |
|
Bush |
1 |
Aluminium Alloy |
|
Protection Cover |
1 |
Aluminium Alloy
|
|
Gong |
1 |
Aluminium Alloy
|
|
Gong Post |
1 |
Aluminium Alloy |
|
Nylon washer |
1 |
Nylon |
|
Dome Nut |
1 |
Aluminium Alloy |
|
Hex. Hed Bolt |
1 |
Plated Steel |
|
Washer |
1 |
S.S. |
|
Striker Arm |
1 |
Aluminium Alloy |
|
Striker Washer |
1 |
Aluminium Alloy |
|
Striker |
1 |
Fibre |
|
Striker Bush, Striker Arm Bolt, Striker Arm Washer, Drive Shaft, Housing Cover |
1 |
Aluminium Alloy |
|
Gasket |
1 |
Neoprene |
|
Ch.Head Bolt, Screw |
1 |
Plated Steel |

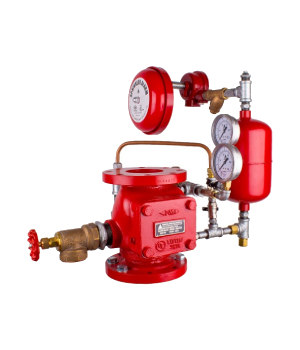

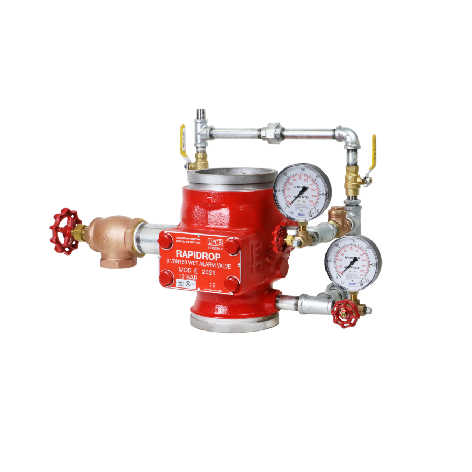

Model B Wet Alarm Valve (Flange / Flange)
Model B wet alarm valves are designed for use in wet pipe sprinkler installations in buildings not subject to freezing temperatures.
This type of wet alarm valve is designed to automatically initiate electric or hydraulic alarm whenever there is a flow of water to one or more sprinklers.
A variety of trim packages are available to suit the requirements of the authority having jurisdiction and a number of accessories can be supplied including straps and padlocks, pressure switches, retard chamber and water motor alarm gong.
This valve must be installed vertically in the main supply to a wet pipe sprinkler system.
| STANDARD SPECIFICATION: | |
|---|---|
|
SIZE RANGE |
80mm (3")
100mm (4")
150mm (6")
200mm (8") |
|
BODY TYPE |
Flange / Flange |
|
WORKING PRESSURE |
12 bar (175 psi)
|
|
BODY MATERIAL |
Cast Iron
|
|
APPROVALS |
FM, UL, LPCB, CE, UKCA, Gost |

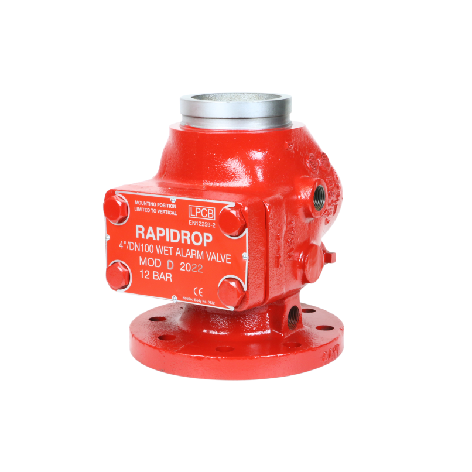

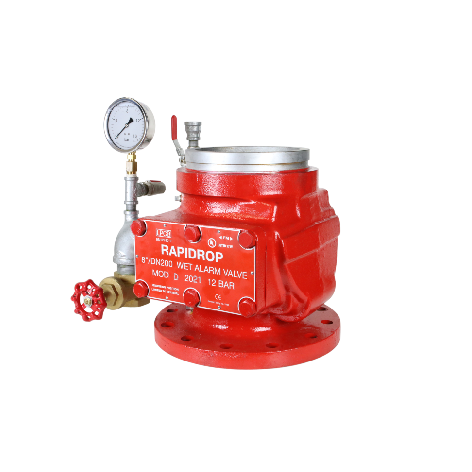

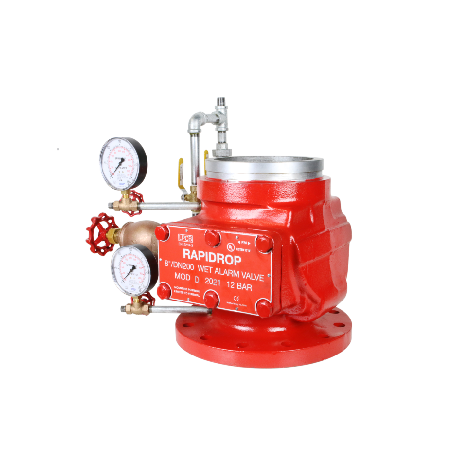

Model D Wet Alarm Valve (Flange / Groove)
Model D wet alarm valves are designed for use in wet pipe sprinkler installations in buildings not subject to freezing temperatures.
This type of wet alarm valve is designed to automatically initiate electric or hydraulic alarm whenever there is a flow of water to one or more sprinklers.
A variety of trim packages are available to suit the requirements of the authority having jurisdiction and a number of accessories can be supplied including straps and padlocks, pressure switches, retard chamber and water motor alarm gong.
This valve must be installed vertically in the main supply to a wet pipe sprinkler system.
| STANDARD SPECIFICATION: | |
|---|---|
|
SIZE RANGE |
100mm (4")
150mm (6")
200mm (8") |
|
BODY TYPE |
Flange / Groove |
|
WORKING PRESSURE |
12 bar (175 psi)
|
|
BODY MATERIAL |
Cast Iron
|
|
APPROVALS |
FM, UL, LPCB, CE, UKCA |

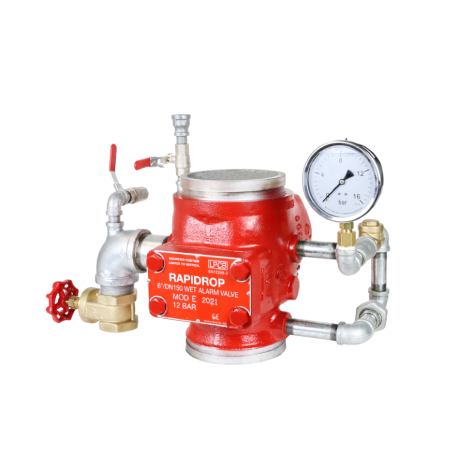

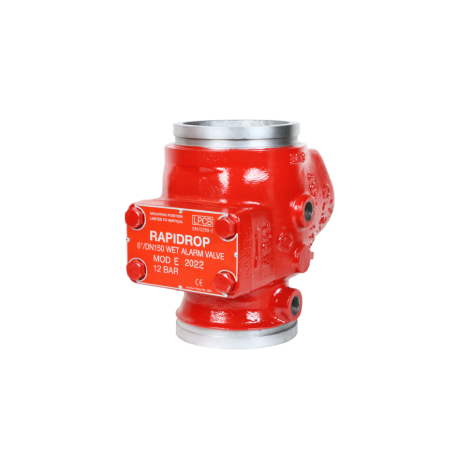

Model E Wet Alarm Valve (Grooved / Grooved)
Model E wet alarm valves are designed for use in wet pipe sprinkler installations in buildings not subject to freezing temperatures.
This type of wet alarm valve is designed to automatically initiate electric or hydraulic alarm whenever there is a flow of water to one or more sprinklers.
A variety of trim packages are available to suit the requirements of the authority having jurisdiction and a number of accessories can be supplied including straps and padlocks, pressure switches, retard chamber and water motor alarm gong.
This valve must be installed vertically in the main supply to a wet pipe sprinkler system.
| STANDARD SPECIFICATION: | |
|---|---|
|
SIZE RANGE |
100mm (4")
150mm (6") |
|
BODY TYPE |
Groove / Groove |
|
WORKING PRESSURE |
12 bar (175 psi)
|
|
BODY MATERIAL |
Cast Iron
|
|
APPROVALS |
FM, UL, LPCB, CE, UKCA, Gost |
Model E Water Motor Alarm Gong
The Model E water motor alarm gong is a self-contained, hydraulically operated alarm gong which sounds continuously whenever the fire protection system is activated. Designed with functional simplicity and sound engineering practice, the Model E water motor alarm gong is always ready to function in the event
of a fire.
It can be used with both wet and dry alarm valves plus deluge valves and is suitable for internal or external installation on any wall with a thickness up to 360mm.
The Model E water motor alarm gong is supplied as standard with a Y-strainer to prevent debris in the piping system from entering the rotor.
| STANDARD SPECIFICATION: | |
|---|---|
|
INLET CONNECTION |
3/4" NPT
|
|
OUTLET CONNECTION |
1" NPT |
|
WORKING PRESSURE |
12 bar (175 psi)
|
|
USE |
Indoor or Outdoor |
|
APPROVALS |
FM, UL, LPCB, CE, UKCA |

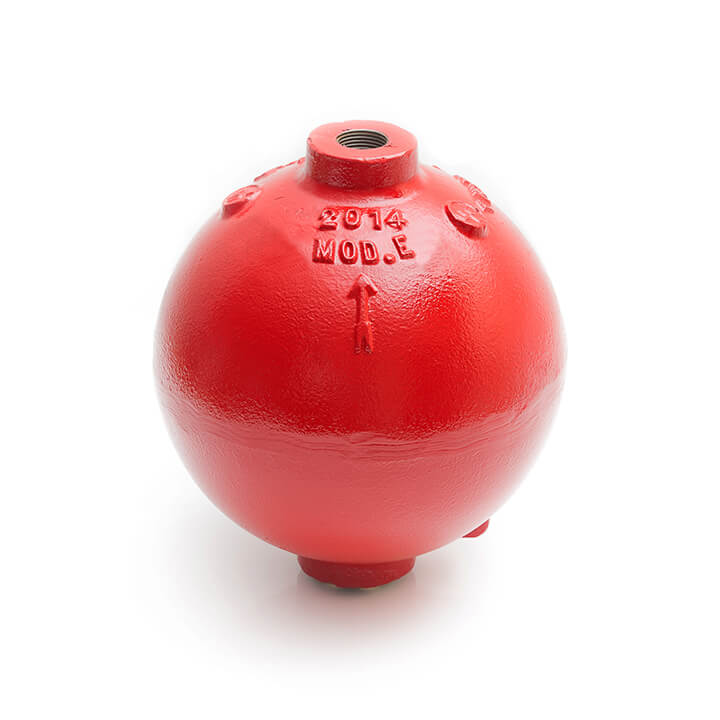

Model E Retard Chamber
The RD Retarding Chamber is used with the Alarm Valve Trim when variable pressure is anticipated in the system. It is a holding tank to prevent the sounding of the sprinkler alarm during a water pressure surge, but will permit the sounding of the alarm on a sustained flow.
The retarding chamber is connected to the alarm port of the alarm valve through the restriction nozzle. The retarding chamber is part of UL Listed Alarm Valve Trim. The retarding chamber is made of Cast Iron material.
| STANDARD SPECIFICATION: | |
|---|---|
|
CONNECTION |
3/4" NPT
|
|
MATERIAL |
Cast Iron |
|
CAPACITY |
3.8 litres |
|
WORKING PRESSURE |
12 bar (175 psi) |
|
FINISH |
Red RAL 3001 |
|
APPROVALS |
FM Approved, UL Listed, LPCB |

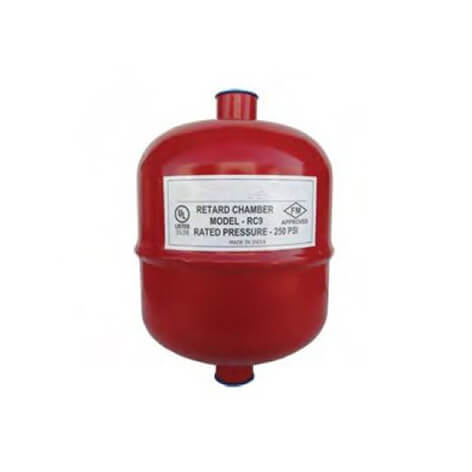

Model RA Retard Chamber
The RD Retard Chamber is used with the Alarm Valve Trim when variable pressure is anticipated in the system. It is a holding tank to prevent the sounding of the sprinkler alarm during a water pressure surge but will permit the sounding of the alarm on a sustained flow.
The retarding chamber is connected to the alarm port of the alarm valve through the restriction nozzle. The retarding chamber is part of UL Listed Alarm Valve Trim. The retarding chamber is made of stainless steel material.
| STANDARD SPECIFICATION: | |
|---|---|
|
CONNECTION |
3/4" BSPT |
|
MATERIAL |
Stainless steel |
|
CAPACITY |
3.8 litres |
|
WORKING PRESSURE |
16 bar (250 psi) |
|
FINISH |
Red RAL 3001 |
|
APPROVALS |
FM Approved, UL Listed |
