Instrumentation Tube Fittings
Instrumentation Tube Fittings
Total Supplier instrument tube fittings are used for leak proof, torque free seal in different instrumentation & process tubing connections. These products eliminate costly & hazardous leakages.

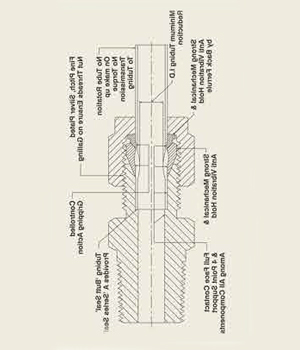

As shown in the figure the normal tube fitting is made of four parts. The parts are machined as per international standards to achieve the high quality. The frerrules are hardened & burnished for better swaging. The nuts are silver plated for preventing the seize up on the threads. The fitting consists of four parts but when it is fixed to the tube.
| STANDARD SPECIFICATION: | |
|---|---|
|
Material |
: Total Supplier fittings are available in different materials as shown in the below mentioned table. |
| MATERIALS | BARSTOCK | FORGINGS |
|---|---|---|
|
STAINLESS STEEL (316 & 304) |
ASTM-A-276, ASTM-A-479,
BS-970, DIN-4401 |
ASTM-A-182, BS-970, DIN-4401 |
|
BRASS |
ASTM-B-16, ASTM-B-453, BS-2874 |
ASTM-B-124, BS-2872 |
|
STEEL MONEL |
ASTM-A-108, ASTM-B-164, BS-3076 |
ASTM-A-576, ASTM-B-164, BS-3076
|
|
Pressure & Temperature rting for Instrumentation Table |
|
Maximum allowable working pressure for fractional size tubing (value in PSI) Table |
|
Maximum allowable working pressure for metric size tubing (value in bar) Table |
Female Connector
|
Imperial Range (Dimensions in Inches) |
|
Matric Range (Dimensions in mm) |
Bulkhead Male Connector
| IMPERIAL RANGE | DIMENSIONS IN INCHES | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PART NO |
T O/D |
P |
B |
D |
F BODY
|
G NUT
|
Fx
|
H
|
Ax |
Hx
|
A |
PANEL HOLE
|
MAX PANEL
|
|
BMCI-1418
|
1/4
|
1/8 |
0.38 |
0.60
|
5/8
|
9/16
|
5/8
|
1.66
|
1.32
|
1.03 |
1.95 |
29/64
|
0.40
|
|
BMCI-1414
|
1/4
|
1/4
|
0.56
|
0.60
|
5/8
|
9/16
|
5/8
|
1.81
|
1.32
|
1.03 |
2.10 |
29/64 |
0.40 |
|
BMCI-3814
|
3/8
|
1/4 |
0.56 |
0.66 |
3/4 |
11/16 |
3/4 |
1.97 |
1.45 |
1.16 |
2.26 |
37/64 |
0.44 |
|
BMCI-1212
|
1/2
|
1/2
|
0.75 |
0.90 |
15/16 |
7/8 |
15/16 |
2.28 |
1.65 |
1.25 |
2.68 |
49/64 |
0.50 |
Bulkhead Female Connector
| IMPERIAL RANGE | DIMENSIONS IN INCHES | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PART NO |
T O/D |
P |
B |
D |
F BODY
|
G NUT
|
Fx
|
H
|
Ax |
Hx
|
A |
PANEL HOLE
|
MAX PANEL
|
|
BFCI-1418
|
1/4
|
1/8 |
0.39 |
0.60
|
5/8
|
9/16
|
5/8
|
1.56
|
1.32
|
1.32 |
1.85 |
0.453 |
0.40
|
|
BFCI-1414
|
1/4
|
1/4
|
0.59
|
0.60
|
3/4
|
9/16
|
5/8
|
1.75
|
1.32
|
1.32 |
2.04 |
0.453 |
0.40 |
|
BFCI-3814
|
3/8
|
1/4 |
0.59 |
0.66 |
3/4 |
11/16 |
3/4 |
1.88 |
1.45 |
1.45 |
2.17 |
0.579 |
0.44 |
|
BFCI-1238
|
1/2
|
3/8 |
0.59 |
0.90 |
0.945 |
7/8 |
0.945 |
2.03 |
1.65 |
1.65 |
2.43 |
0.768 |
0.50 |
|
BFCI-1212 |
1/2 |
1/2 |
0.78 |
0.90 |
1.063 |
7/8 |
0.945 |
2.22 |
1.65 |
1.65 |
2.62 |
0.768 |
0.50 |

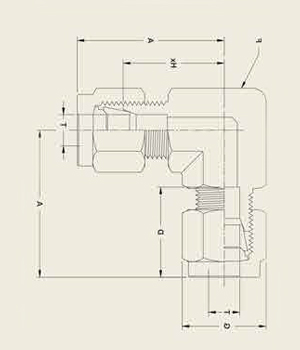

Female Elbow
| IMPERIAL RANGE | DIMENSIONS IN INCHES | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
PART NO |
T O/D |
P |
A LENGTH |
B |
HY |
D |
F BODY
|
G NUT
|
Hx BODY
|
|
FEI-1818
|
1/8
|
1/8 |
0.95 |
0.39
|
0.15
|
0.50
|
0.551 |
7/16
|
0.708 |
|
FEI-1814
|
1/8 |
1/4
|
1.07 |
0.59
|
0.88
|
0.50
|
0.748
|
7/16 |
0.825
|
|
FEI-3618
|
3/16
|
1/8 |
0.98 |
0.39 |
0.75 |
0.54 |
0.551 |
1/2 |
0.703 |
|
FEI-1418
|
1/4
|
1/8 |
1.04 |
0.39 |
0.75 |
0.60 |
0.551 |
9/16 |
0.749 |
|
FEI-1414
|
1/4 |
1/4 |
1.17 |
0.59 |
0.88 |
0.60 |
0.630 |
9/16 |
0.886 |
|
FEI-5618
|
5/16 |
1/8 |
1.17 |
0.39 |
0.75 |
0.64 |
0.551 |
5/8 |
0.866 |
|
FEI-5614
|
5/16 |
1/4 |
1.20 |
0.59 |
0.88 |
0.64 |
0.748 |
5/8 |
0.905 |
|
FEI-3818
|
3/8 |
1/8 |
1.20 |
0.39 |
0.75 |
0.66 |
0.748 |
11/16 |
0.905 |
|
FEI-3814
|
3/8 |
1/4 |
1.23 |
0.59 |
0.88 |
0.66 |
0.748 |
11/16 |
0.945 |
|
FEI-3838
|
3/8 |
3/8 |
1.32 |
0.59 |
0.88 |
0.66 |
0.748 |
11/16 |
1.027 |
|
FEI-3812
|
3/8 |
1/2 |
1.41 |
0.78 |
1.12 |
0.66 |
1.102 |
11/16 |
1.102 |
|
FEI-1214
|
1/2 |
1/4 |
1.38 |
0.59 |
0.88 |
0.90 |
0.748 |
7/8 |
1.000 |
|
FEI-1238
|
1/2 |
3/8 |
1.43 |
0.59 |
0.88 |
0.90 |
0.748 |
7/8 |
1.023 |
|
FEI-1212
|
1/2 |
1/2 |
1.52 |
0.78 |
1.12 |
0.90 |
1.102 |
7/8 |
1.142 |
|
FEI-5858 |
5/8 |
3/8 |
1.46 |
0.59 |
0.88 |
0.96 |
0.748 |
1 |
1.102 |
|
FEI-5812
|
5/8 |
1/2 |
1.52 |
0.78 |
1.12 |
0.96 |
1.102 |
1 |
1.142 |
|
FEI-3412 |
3/4 |
1/2 |
1.51 |
0.78 |
1.12 |
0.96 |
1.102 |
1-1/8 |
1.102 |
|
FEI-3434
|
3/4 |
3/4 |
1.65 |
0.81 |
1.25 |
0.96 |
1.102 |
1-1/8 |
1.260 |
Equal Union Cross
|
Imperial Range (Dimensions in Inches) |
|
Matric Range (Dimensions in mm) |
Male Branch Tee
|
Imperial Range (Dimensions in Inches) |
|
Matric Range (Dimensions in mm) |
Nut & Ferrules
|
Imperial Range (Dimensions in Inches) |
|
Matric Range (Dimensions in mm) |
|
Imperial Range Matric Range |
